· Titan windows operating system
· Core I5 CPU, 128G SSD, 4G memory
· Built-in 15.6-inch capacitive touch screen
· Standard 16DMX outpu, 8192 DMX channels. Can be expanded to 64 DMX output
· Built-in UPS power supply, which can supply power for about 30 minutes after power failure
· 1 LTC timecode trigger port
· Built-in graphic generator, and built-in effects can be synchronized.
· The console has a built-in player time code
· 10 macro keys to edit any program.
· 20 playback faders, supporting 1000 virtual playbacks.
· Powerful attribute control window, CMY RGB color picker system
· Support doodle handwriting naming function, support Art-Net network function
· Support Chinese menu display, and built-in multiple languages.
· Built-in thousands of light libraries, and built-in light library editing software
· Built-in Visualiser visual stage simulation software, support video, can be pre-programmed!
· Support MIDI time code sound and light synchronization function

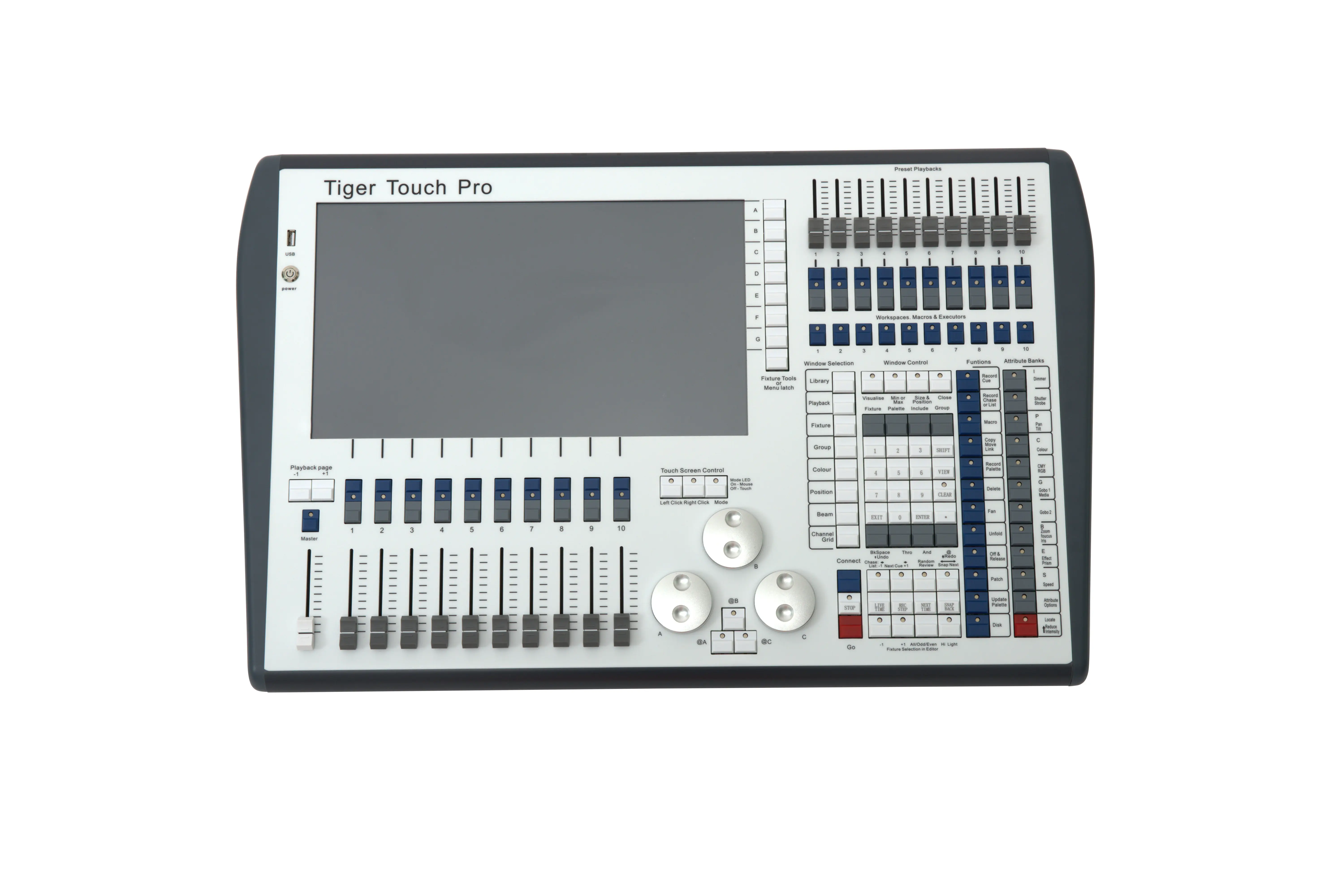

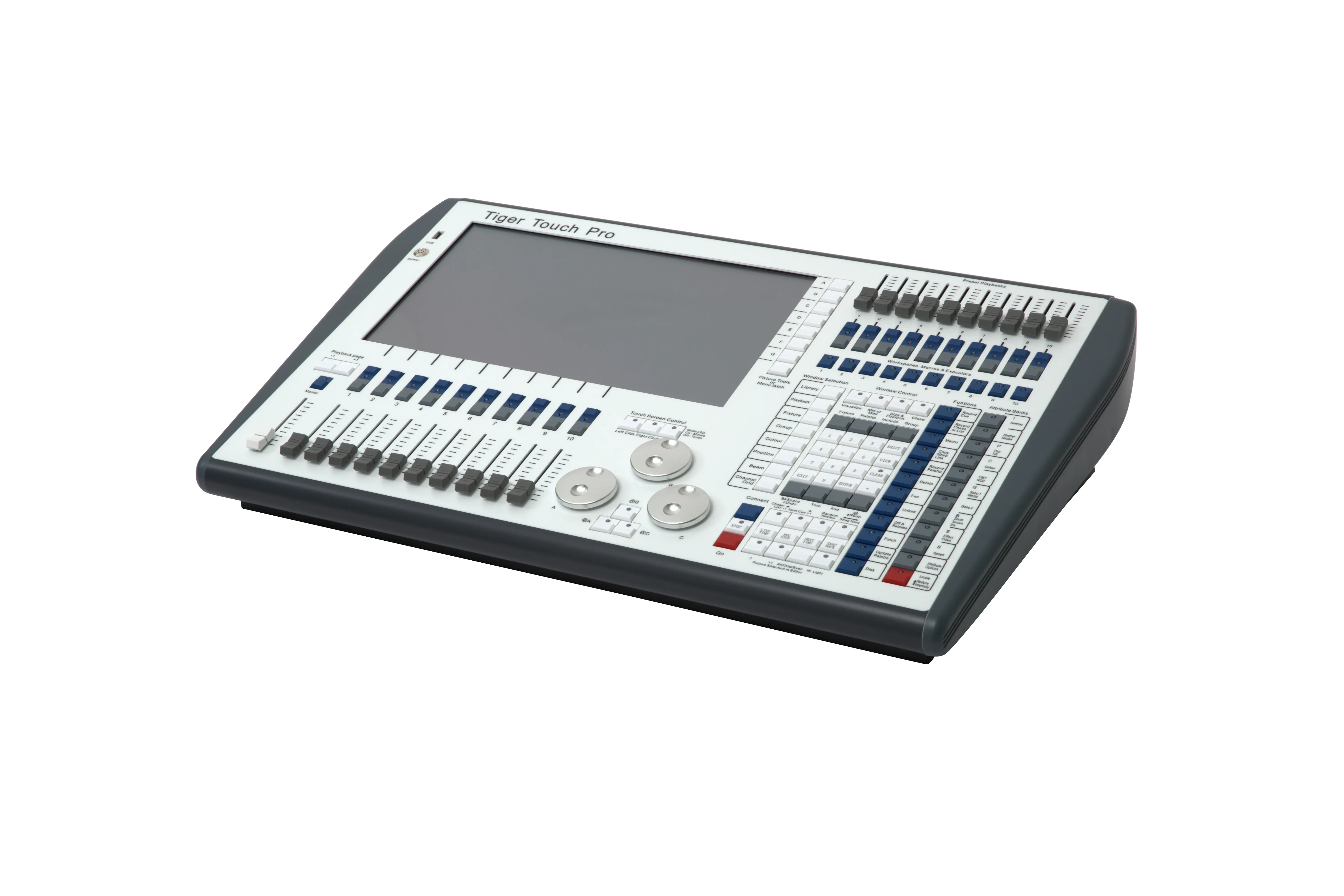

TT-Pro Tiger Touch DMX Console, 8192 Channel Stage Lighting Controller
Technical Specifications
- Model: TT-Pro Tiger Touch Pro
- System: Titan Windows Operating System
- Max DMX Channels: 8192
- Expandable Universes: Up to 64
- Display: 15.6-inch capacitive touch screen
- Power: Built-in UPS (30 mins delay power protection)
- Network: Integrated Art-Net network function
- Application: Concert, nightclub, wedding stage, theater, outdoor festival lighting engineering
4. Package Includes
1 × TT-Pro Tiger Touch Pro DMX Lighting Console
Power cord, user operation manual, USB data cable
5. After-sales Service
All lighting consoles pass strict aging testing before shipment, covered by 1-year factory warranty. Our professional lighting technical team provides remote online guidance for Titan OS programming, network signal debugging and equipment setup.
