Light Source System
Light Source: 315W.
Color Temperature: 7900K ± 500K.
Light Source Lifespan: 2000 hours
Lens Diameter: 145mm.
Color System
Color Wheel: 12 colors + white light.
Pattern System
1 fixed pattern wheel, 9 patterns + white light, with bidirectional variable speed rotation.
Zoom System
Beam Angle: Parallel beam angle 0-2 degrees.
Prism
Prism Wheel 1: 6-row mirror + rotation function.
Prism Wheel 2: 32 prisms + 8-row mirror + rotation function.
Seven-color built-in seven-color wheel effect/fog effect optional.
Dimming: 0-100% linear dimming.
Stroboscope: Up to 25Hz, random stroboscope selectable, speed controllable.
Scanning
Horizontal Scanning: 540 degrees (8/16-bit precision scanning).
Vertical Scanning: 270 degrees (8/16-bit precision scanning).
With automatic error correction reset function.
Intelligent Fan Speed Regulation
Focusing System: Electronic focusing. When the lamp is not lit, the fan stops running to reduce noise.
Display System: LCD display, 4 touch buttons for function control. The display can be flipped 180 degrees, with screen off/lock function, and Chinese-English switching.
Protection Class: IP20.
Control: 16-channel control mode, standard DMX512 protocol. RDM control.
Dimensions and Weight
Electrical Parameters

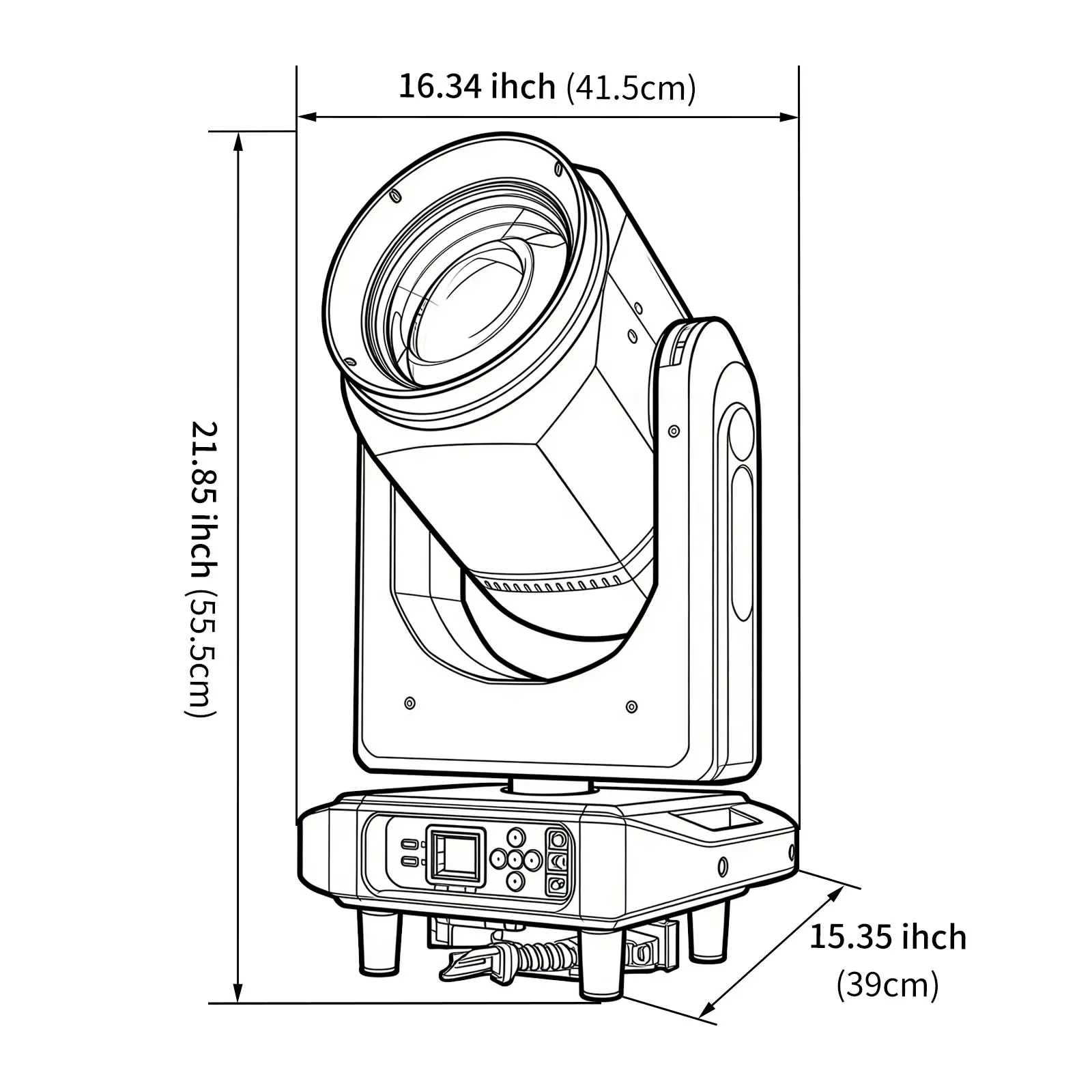

Product Dimensions: 370*260*535mm.
Net Weight: 9.9KG.
Power Supply: AC100-240V, 50/60Hz.
Total Lamp Power: 500W.
MINI 315 PRISM KING 315W Beam Moving Head Stage Light DMX/RDM
Product Overview
MINI 315 PRISM KING compact beam moving head light adopts 315W high-lumen lamp source, 7900K color temperature and 2000-hour long service life.
It features dual-layer 32+8 rotating prism, 12-color wheel + white light, 9 rotating gobos, adjustable 0–2° ultra-narrow sharp beam angle.
Built-in seven-color split effect, 0–100% linear dimming and variable strobe speed.
540° horizontal & 270° vertical high-precision scanning with auto error correction. Intelligent speed-adjust fan reduces running noise for indoor venues.
2. Core Features
- High Brightness 315W Lamp Source
7900K cool white light, long service life, ultra-sharp concentrated beam output.
- Multi-layer Rich Optical Effects
12 color wheel, 9 rotating gobos, 32+8 compound rotating prism, built-in split color fog softening effect.
- Ultra Narrow Adjustable Beam Angle
0°–2° parallel narrow beam, creates sharp long-distance light beam for stage atmosphere effect.
- Wide Range Precise Scanning
540° Pan / 270° Tilt 8/16-bit precision scanning, automatic error correction for smooth rotation.
- Professional DMX & RDM Signal Control
25 DMX control channels, DMX512 & RDM dual protocol, flipable LCD touch screen with Chinese/English switchable menu.
- Low Noise Intelligent Heat Dissipation
Fan auto adjusts rotation speed according to lamp temperature, effectively cut running noise for indoor entertainment venues.
