￭ Light Source System
Light Source: 700W white LED module, color temperature: 7800K (customizable).
Light source lifespan: ≥20,000 hours.
￭ Color System
CMY color mixing: CMY+K, composed of 8 shutter-style CMYK color filters, capable of blending various colors.
CTO color temperature linear adjustment, 3000K-6500K.
Color wheel 1: 1 color wheel with 7 colors + white, bidirectional rainbow effect.
Color filters can be positioned freely, featuring a bidirectional rotating rainbow effect.
￭ Pattern System
Rotating pattern wheel: 1 fixed pattern wheel with 7 interchangeable patterns + white circle.
Fixed pattern wheel: 1 fixed pattern wheel with 8 patterns + white circle.
Dynamic wheel: 1 dynamic flame wheel, capable of bidirectional rotation.
Cutting wheel: 1 rotating cutting wheel, adjustable from -60° to +60°, with 4 cutting blades controlled by 8 motors.
￭ Zoom System
Beam angle: 6°-50° zoom lens, with linear zoom-in and zoom-out functionality.
Focus adjustment: 0%~100% linear focus adjustment.
￭ Prism: 1 six-facet prism + 1 three-facet prism, both capable of bidirectional rotation and layering.
￭ Frost: Built-in frost filter for adjustable softening effects.
￭ Dimming: 0-100% linear dimming.
￭ Strobe: Up to 25Hz, with optional random strobe and adjustable speed.
￭ Scanning
Horizontal scanning: 540° (8/16-bit precision scanning).
Vertical scanning: 270° (8/16-bit precision scanning).
Auto-correcting reset function included.
￭ Display System
LCD display with 4 touch buttons for functional control, adjustable 180°, featuring screen-off/lock function and Chinese/English language switching.
￭ Protection Level: IP20.
￭ Control: 35-channel control mode, standard DMX512 protocol, RDM control.
￭ Electrical Parameters
Power supply: AC100-240V, 50/60Hz.
Total power consumption: 800W.

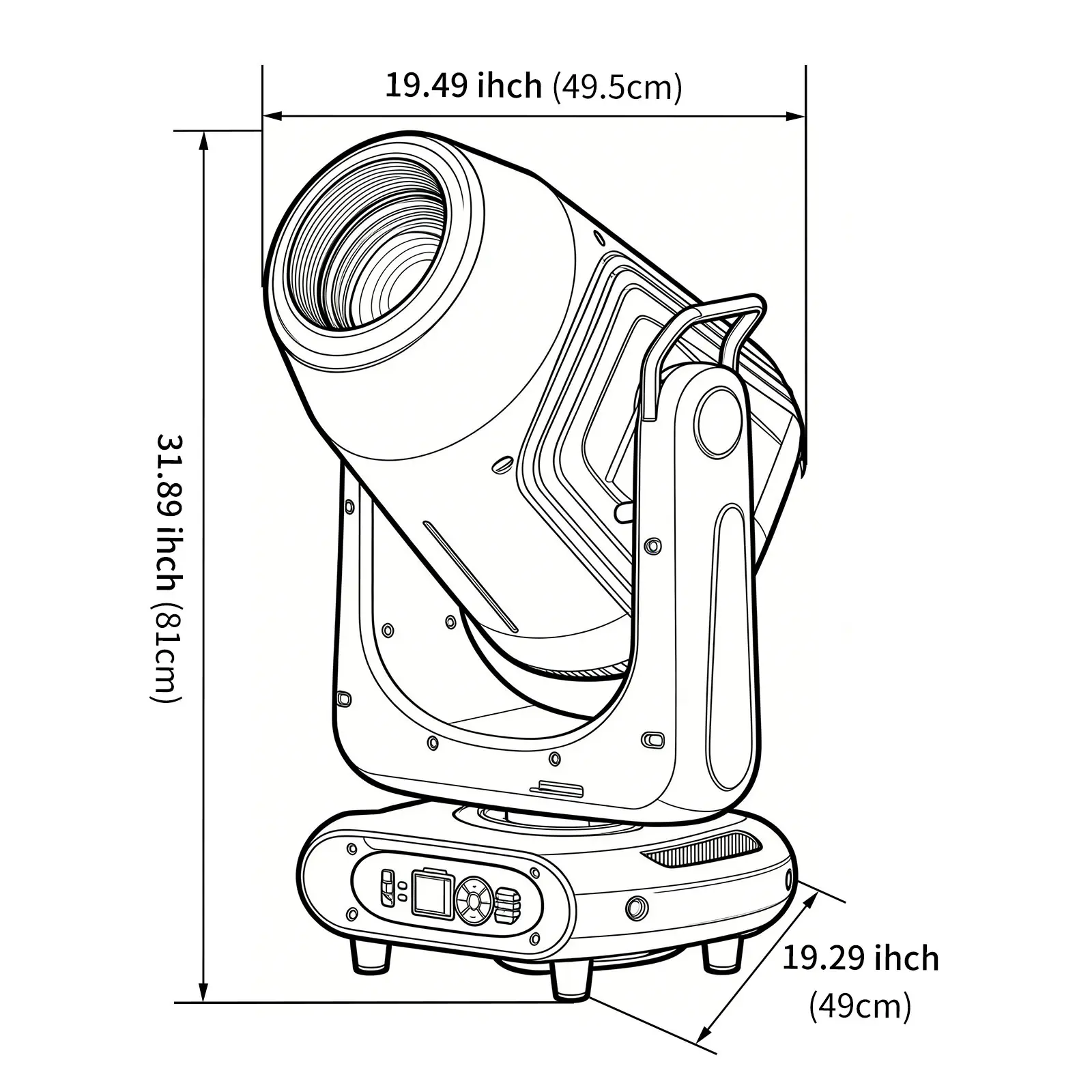

￭ Dimensions & Weight
Product dimensions: 400*314*699mm.
Net weight: 28.5kg.

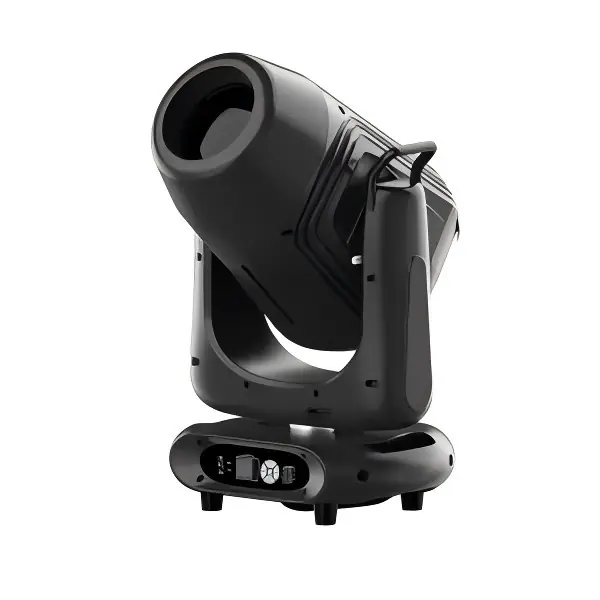

700W LED BSWF 4IN1 Moving Head Beam Spot Wash Framing Stage Light DMX512
Short Description
700W LED 4-in-1 BSWF moving head light integrates beam, spot, wash & framing effects.
CMY full color mixing, linear zoom, rotating gobos & cutting shutters, variable strobe, DMX512+RDM control, bilingual touch LCD, ideal for large concerts, theaters and live events.
Brief Spec
- Light Source: 700W white LED module, 25000hrs lifespan
- Function: Beam / Spot / Wash / Framing 4-in-1 hybrid
- Effects: CMY mixing, CTO temp adjustment, multi rotating gobos, 8 motor cutting shutters, 0–100% dimming, adjustable strobe
- Scan: Pan 540° / Tilt 270° high-precision scanning
- Control: DMX512, RDM, reversible CN/EN touch LCD screen
- Power: 800W total, AC100–240V, IP20
- Application: Concert, theater, large event, live show, wedding stage
