Optoelectronic Technology:
Input Voltage: AC100~240V, 50/60Hz
Input Power: 400W/500W
Light Source: 150W/260 White Laser Module
Color Temperature: 11000K
Laser Module Lifespan: 20,000 hours
Light Output Aperture: 180MM
Beam Fullness: 90%
Scanning Technology:
Horizontal Scanning: 540° (16-bit precision scanning), fine adjustment precision of 0.008°
Vertical Scanning: 270° (16-bit precision scanning), fine adjustment precision of 0.008°
The advanced scanning system is more balanced and stable, quiet, with magnetic encoding positioning and an automatic error-correcting reset function.
Color System:
CMY stepless color mixing, with a uniform and smooth CMY color mixing system.
1 color filter wheel: 17 fixed color filters + white light, capable of achieving two-way color rainbow, two-color step gradient, two-way rotation of the color wheel, and arbitrary positioning of color filters.
1 fog filter, making the coloring effect soft.
1 six-color filter, which works better with a prism.
Pattern System:
1 fixed pattern wheel: 30 pattern sheets + white circle, capable of achieving flowing water and jitter effects; the pattern wheel can be positioned.
Prism System:
1 rotating six-row mirror, which can rotate in forward and reverse directions and has a prism positioning function.
1 8-prism, which can rotate in forward and reverse directions.
The two prisms can be used overlappingly, and the effect is better when used with the six-color filter.
Control Programming:
1 channel mode: 19 international standard DMX512 channel control modes
Control Protocols: Standard DMX512 protocol, RDM bidirectional data transmission. sACN, Art-net Ethernet control protocol, and wireless DMX512 control (optional extra)
Focus: Electronic focusing, with ultra-fine and smooth focus adjustment
Strobe: Maximum frequency up to 25Hz, electronic strobe speed is 1-13 times per second, with selectable modes such as pulse, asynchronous, synchronous, random slow, medium, fast, etc.
Dimming: 0~100% linear dimming
Fogging: 0~100% linear fogging
Display:
2.4-inch LCD screen; Chinese and English languages can be switched freely, the font can be rotated 180° for display, with touch key operation.
Other Functions:
Input signal isolation protection function to ensure stable signal transmission without interference
Intelligent fan control
Electronic temperature sensing and detection
DMX channel RDM monitoring
Protection Class: IP66
Dimensions and Weight:

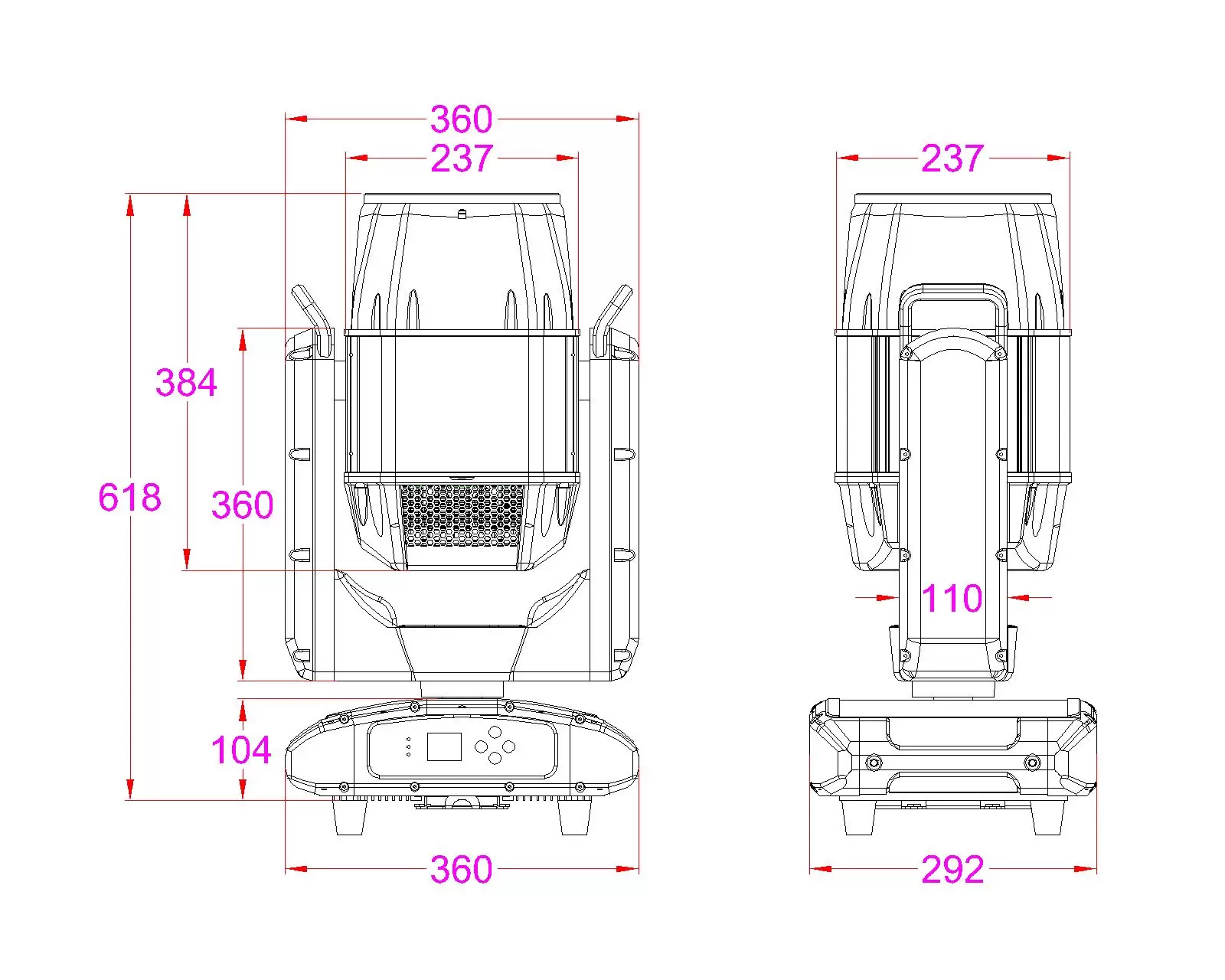

Product Dimensions: 360 X 292 X 654mm
Net Weight: 25kgs
